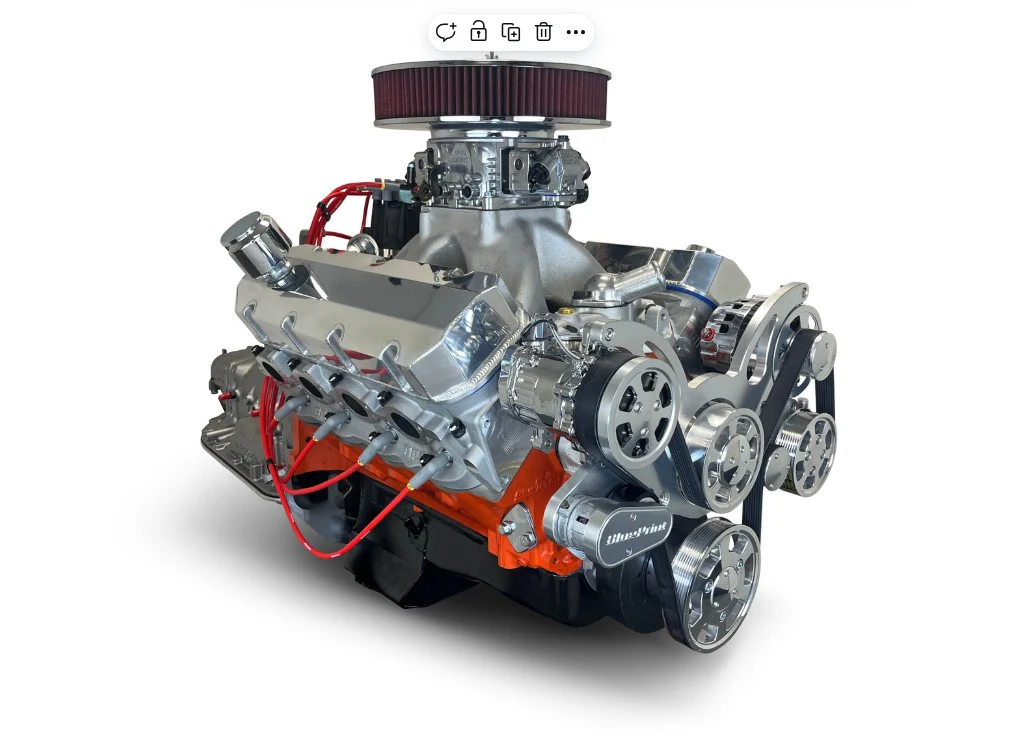

GM Big Block Compatible 632 c.i. Pro Series Engine and 4L80E Automatic Transmission - 815 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

GM Big Block Compatible 632 c.i. Pro Series Engine and 4L80E Automatic Transmission - 815 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

Description:

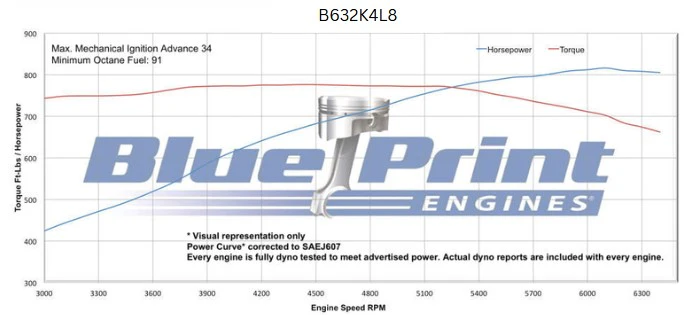

  • Horsepower & Torque: 815 Horsepower / 775 FT LBS
  • Compression Ratio: 11.0:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.600" Bore
  • 1-Piece Rear Main Seal
  • Mech Fuel Pump Provision: Yes
  • Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)

Rotating Assembly:

  • BluePrint Forged Crankshaft
  • 4.750" Stroke
  • Forged H-beam 6.635" Connecting Rods
  • Forged Pistons
  • Internally Balanced

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8012
  • 119cc Chamber
  • 2.30" Intake / 1.88" Exhaust Valves
  • 358cc Intake / 125cc Exhaust Runners
  • Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.

Cam Specs:

  • Cam Type: Roller
  • .698 Intake / .698 Exhaust Lift
  • 272 Intake / 282 Exhaust Duration
  • @.050-110 Degree Lobe Separation

Also Includes:

  • Valve Covers
  • Oil Pan
  • Timing Cover
  • Harmonic Balancer
  • 1250cfm Holley Carburetor
  • Intake Manifold
  • Pro Series Ready Run Distributor - BPP3503BK
  • Electric Fuel Pump
  • Thermostat and Thermostat Housing
  • Polished Pulley Kit - BPP454FDPSAC4
    • Reverse Rotation Short Water Pump
    • 1- Wire 140amp Alternator
    • Peanut Style Air Conditioning Compressor
    • Type II Power Steering Pump with Remote Reservoir

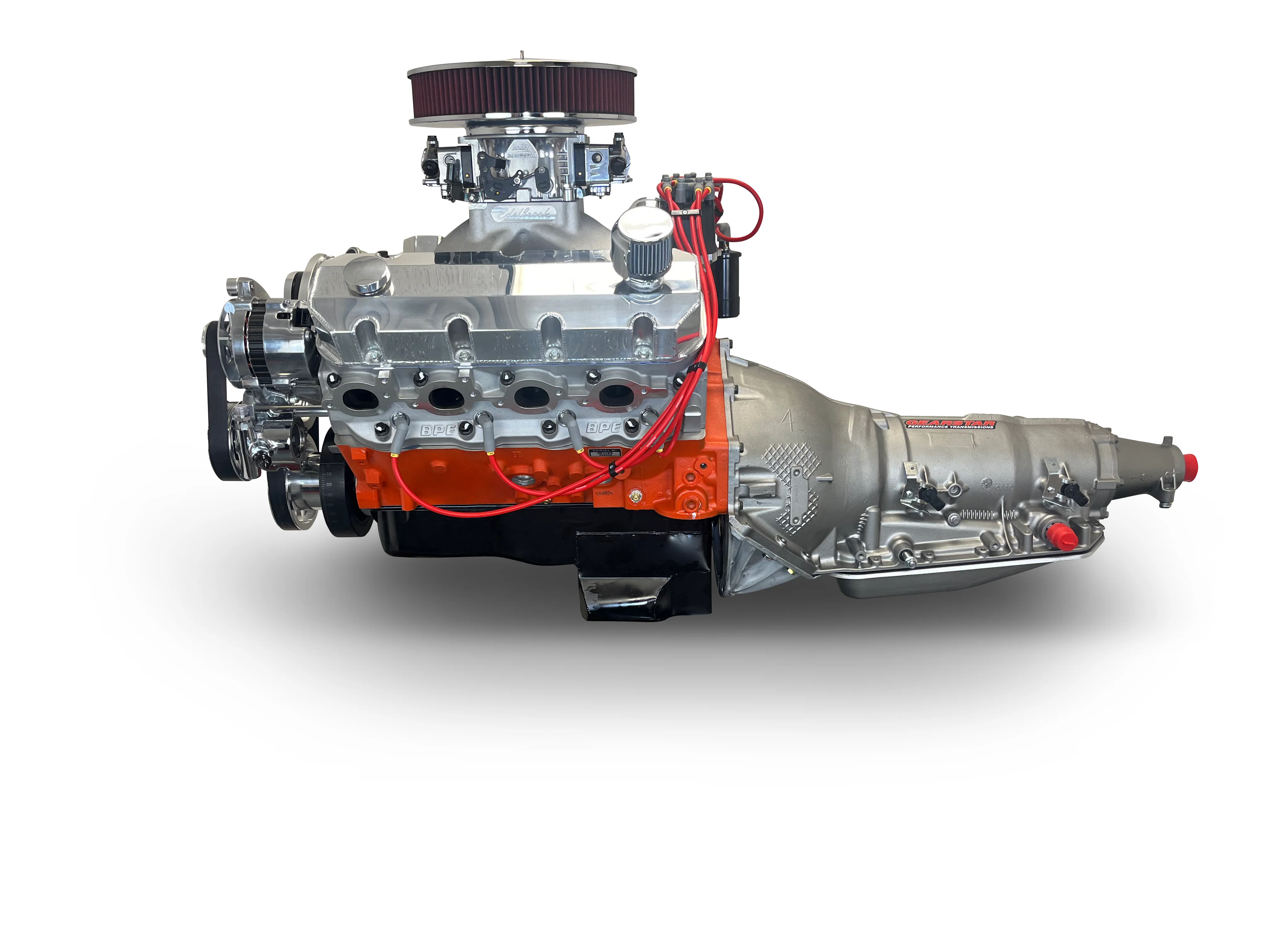

Assembled with Complete 4l80e Automatic Transmission Package:

  • 4L80E Complete Package with Electronic Controller Included
  • W/Lockup Capability
  • 3800+ Stall Torque Converter
  • Flex Plate
  • Starter

4L80E Gear Ratios:

  • 1: 2.482
  • 2: 1.482
  • 3: 1.00
  • 4: 0.750
  • R: 2.077

Notes:

  • Not for use in pollution-controlled vehicles.
  • This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
  • Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.

    $29,799.00
